本系列產品廣泛運用于礦山、冶煉、建材、公路、鐵路、建筑垃圾處理、水利和化學工業等眾多領域，是初級結構圖 Structural Drawing
破碎首選設備，具有破碎比大、破碎粒度均勻、性能穩定、維修簡便、運行費用低等特點。
Jaw crusher, which is ideal for the primary and secondary crushing, is widely used in mining, quarry, metallurgy,
building, highway, railway, construction waste processing, water conservancy and chemical industry, etc. It
features high reduction ratio, easy operation, simple construction, repeatable performance, easy maintenance,
and low consumption.
技術參數 Technical Parameters
| 型號 Model |
進料口尺寸 Feed Opening Size (mm×mm) |
最大進料邊長 Max Feed Edge (mm) |
排料口調整范圍 Discharge Opening Range (mm) |
處理能力 Processing Capacity (t/h) |
偏心軸轉速 Eccentric Shaft Speed (r/min) |
電動機功率 Motor Power (kw) |
重量 Weight (t) |
外形尺寸 Overall Dimensions （L×W×H） (mm) |
||
| PE-400×600 | 400×600 | 340 | 40-100 | 16-55 | 275 | 30 | 6.5 | 1565 | 1732 | 1586 |
| PE-500×750 | 500×750 | 425 | 50-100 | 32-80 | 275 | 55 | 10.3 | 1890 | 1916 | 1870 |
| PE-600×900 | 600×900 | 500 | 65-160 | 50-120 | 250 | 55-75 | 15.5 | 2305 | 1840 | 2298 |
| PE-750×1060 | 750×1060 | 630 | 80-140 | 100-180 | 250 | 110 | 28 | 2450 | 2472 | 2840 |
| PE-800×1060 | 800×1060 | 640 | 100-200 | 136-230 | 250 | 110 | 29 | 2500 | 2472 | 2840 |
| PE-870×1060 | 870×1060 | 660 | 200-260 | 190-336 | 250 | 110 | 30.5 | 2870 | 2430 | 2800 |
| PE-900×1200 | 900×1200 | 750 | 120-240 | 180-280 | 200 | 132 | 46.5 | 3435 | 2904 | 2990 |
| PE-1000×1200 | 1000×1200 | 850 | 220-340 | 200-300 | 200 | 132 | 47 | 3535 | 2904 | 2990 |
| PE-1200×1500 | 1200×1500 | 1000 | 150-300 | 300-500 | 180 | 200 | 79 | 4587 | 3342 | 3553 |
| PE-1500×1800 | 1500×1800 | 1200 | 220-350 | 500-800 | 180 | 280 | 122 | 5160 | 3660 | 4248 |

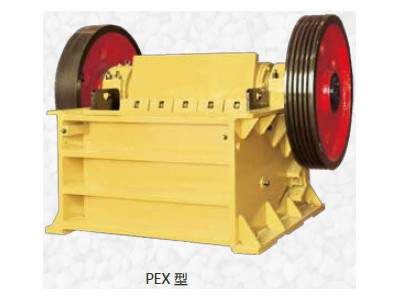

| PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 30-37 | 6.5 | 1530 | 1992 | 1380 |
| PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-60 | 330 | 37 | 7.7 | 1900 | 2192 | 1430 |
| PEX-300×1300 | 300×1300 | 300 | 70-140 | 20-120 | 300 | 75 | 11.43 | 1750 | 2320 | 1718 |
| PEX-350×1200 | 350×1200 | 300 | 70-140 | 20-120 | 300 | 75 | 11.43 | 2123 | 2250 | 1721 |
