本系列產品一般作為二級破碎設備，也可根據用戶的要求，變換轉子和破碎腔，作為初級破碎設備，廣泛 應用于高速公路、水庫、高速鐵路、機場等對石料質量標準要求高的領域，具有破碎比大、性能穩定、經破 碎后的物料成立方體及針片狀含量少等特點。

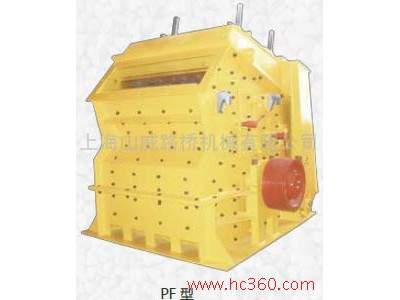

Impact crusher is generally used as secondary crusher, and by changing rotor and crushing cavity, it can also be used as primary crusher according to the customer's requirements. It is widely used in highway, reservoir, railway, airport and other fields that need rock with cubic shape. It features high capacity, high performance, high reduction ratio, cubic shape and low flakiness.

技術參數 Technical Parameters

型號 model	轉子規格 Spec of Rotor (mm)	進料口尺寸 Feed Opening Size (mm×mm)	最大進料邊長 Max. Feed Edge (mm)	處理能力 Processing Capacity (t/h)	電動機功率 Motor Power (kw)	重量 （不包括電機）Weight (Excluding Motor) (t)	外形尺寸 Overall Dimensions (L×W×H) (mm)
PF-1007	φ1000×700	400×730	300	37-45	30-55	9.5	2400×1558×2660
PF-1010	φ1000×1050	400×1080	350	50-80	55-75	12.2	2400×2250×2660
PF-1210	φ1250×1050	400×1080	350	70-120	110-132	14.1	2690×2338×2890
PF-1214	φ1250×1400	400×1080	350	130-180	132-160	18.6	2690×2688×2890
PF-1316	φ1300×1600	858×1640	500	150-220	200	19.5	3096×3273×2667
PF-1010V	φ1000×1050	400×1080	350	50-80	55-75	13.2	2400×2250×2660
PF-1210V	φ1250×1050	400×1080	350	70-120	110-132	15.2	2696×2338×2890
PF-1214	φ1250×1400	400×1080	350	130-180	132-160	18.6	2690×2688×2890
PF-1316	φ1300×1600	858×1640	500	150-220	200	19.5	3096×3273×2667
PF-1010V	φ1000×1050	400×1080	350	50-80	55-75	13.2	2400×2250×2660
PF-1210V	φ1250×1050	400×1080	350	70-120	110-132	15.2	2696×2338×2890
PF-1214V	φ1250×1400	400×1080	350	130-180	132-160	20	2690×2688×2890
PF-1310V	φ1300×1050	490×1170	350	70-120	110-160	13.5	2780×2478×2855
PF-1315V	φ1320×1500	860×1520	350	150-220	180-220	20.5	3096×3273×2667
PF-1515V	φ1500×1500	850×1580	350	220-280	280-315	29.5	3550×2835×3270
PFX-1010	φ1000×1500	400×1080	40	20-50	90-110	9.2	2492×1821×2202
