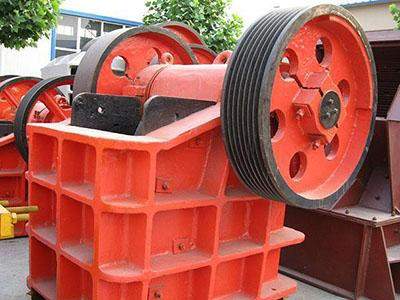

顎式破碎機是靠可動顎板周期地壓向固定顎板，將夾于其中的物料壓碎。兩個顎板都是長方形的。顎式破碎機活動顎板的擺動可分為簡單擺動、復雜擺動和組合擺動等三種。
Jaw crusher according to the width of entrance and exit to distinguish between types of large, medium and small; feeding by mouth is wider than 600mm for the large-scale; 300 ~ 600mm are for the medium; <300mm are small-scale. Specifications in order to feed its mouth to the width B and length L, said, for example, 250 × 400 Jaw Crusher, that their feeding mouth wide 250mm, length 400mm.
Aerated concrete plant commonly used in small complex swing jaw crusher, especially in the majority of 250 × 400 model.
Jaw crusher of simple structure, easy inspection and replacement of parts, management and maintenance, running a long time. Its main drawback is the swing of the great, have a great inertia of the machine base are higher, and generally not advisable to install the floor.
|
型號 |
最大給料尺寸 |
出料品尺寸 |
生產能力 |
電動面功率 |
外型尺寸 |
|
PE150×250 |
≤130 |
15-45 |
1-4 |
5.5 |
896×745×935 |
|
PE250×300 |
≤150 |
15-55 |
3-6 |
7.5 |
1050×987×1000 |
|
PE250×400 |
≤210 |
25-60 |
5-20 |
15 |
1215×1520×1030 |
|
PE400×600 |
≤350 |
40-90 |
15-60 |
30 |
1650×1588×1050 |
|
PE500×750 |
≤425 |
50-100 |
40-110 |
45 |
1956×1918×1920 |
|
PE600×900 |
≤500 |
60-125 |
90-180 |
55 |
2250×2733×2280 |
|
PE800×900 |
≤600 |
80-140 |
100-220 |
75 |
2450×2950×2490 |
|
PE750×1060 |
≤630 |
60-150 |
110-380 |
110 |
2531×2455×2783 |
|
PE900×1060 |
≤700 |
100-160 |
180-380 |
110 |
2900×2657×2950 |
|
PE900×1200 |
≤750 |
110-165 |
220-450 |
132 |
3100×2760×3260 |
|
PE1000×1200 |
≤900 |
110-185 |
230-480 |
132 |
3200×2760×3260 |
|
PE1200×1500 |
≤950 |
115-195 |
250-500 |
220 |
3710×3446×4075 |
|
PE1500×1800 |
≤1200 |
135-225 |
350-700 |
280 |
5100×4700×4300 |
|
PEX150×750 |
≤120 |
10-40 |
5-16 |
15 |
1310×1118×1145 |
|
PEX250×750 |
≤210 |
15-50 |
15-30 |
22 |
1400×1751×1515 |
|
PEX350×750 |
≤300 |
15-50 |
18-40 |
30 |
1485×1680×1648 |
|
PEX250×1000 |
≤210 |
15-60 |
15-60 |
30 |
1550×1964×1380 |
|
PEX250×1200 |
≤210 |
15-60 |
20-60 |
37 |
1530×1946×1380 |
|
PEX300×1300 |
≤250 |
25-60 |
15-65 |
55 |
2000×2320×1730 |
| 注：任何產品設計與規格更改，屆時恕不另行通知。 | |||||
