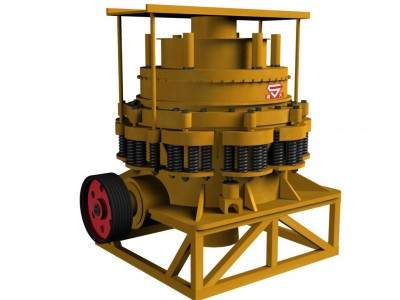

PYF彈簧圓錐破碎機系列

SERIES SPRING CONE CRUSHER

彈簧圓錐破碎機工作時，電動機通過水平軸和一對傘輪齒帶動偏心軸套旋轉，破碎圓錐軸心線在偏心軸的運動下做旋擺運動，使得破碎壁表面時而靠近又時而離開軋臼壁的表面，從而使礦石在破碎腔內不斷地受到擠壓和彎曲而被破碎?？蓮V泛用于冶金、建筑、筑路、化工、建材工業中，適于破碎堅硬與中硬等礦石及巖石。如鐵礦石、石灰石、石英、花崗巖、水泥熟料等。

When the crusher is running, a pair of bevel gear drives the eccentric bushing moved by the motor.

The center of the cone swings upon the force by the motor.It makes the surface of the mantle close and leave the bowl crusher,then compressing ore in the container,This series of crusher is widely used in metallurgical industry,construction,road construction and chemical industry,which is suitable for hard and medium hard materials such as iron ore,limestone,quartz,clinker,ect.

產品特點 FEATURES

采用了更佳的破碎頻率和偏心距，使破碎產品中細粒級含量更高；

Applying better crushing frequency and eccentric,

將為您提供強大的破碎力，其力臂比市場上現有的其他圓錐破碎機都長，力臂越長，破碎沖擊力矩越大。長力臂體現在主軸上，具有降低偏心軸承載荷、降低軸承溫度、延長軸承使用壽命的優點。較大的破碎力加上物料的自由下落，使破碎機具有高頻率，亦即較低的耗材；

The length of the force arm designed for our cone crusher exceeds all other come crushers available today.The longer the force arm,the greater the moment of crushing impact.

最大的破碎錐沖程將提高較大的生產能力，該機設計有大的偏心距、恰到好處的錐角，使其具有較大的排料體積；

The long force arm of our crusher represented bye the main shaft,provides lower eccentric bearing loads,,

特有的彈簧保險系統，作為過載保護系統可使異物、鐵塊通過破碎腔而不危害破碎機，此系統比老式破碎機產生更大的反作用力，所以破碎力就越加變大了，破碎力越大，生產率越高；

Crusher exceeds all other come crushers available today.The longer the force arm,the greater the moment of crushing impact.

獨特的液壓系統，可將移動式液壓站和液壓清腔系統連接起來，啟動液壓站后，升起支承套、調整套和軋臼壁，使之離開主架體，從而增大破碎腔空間，便于清理工作。

The long force arm of our crusher represented by the main shaft,provides lower eccentric bearing loads,
