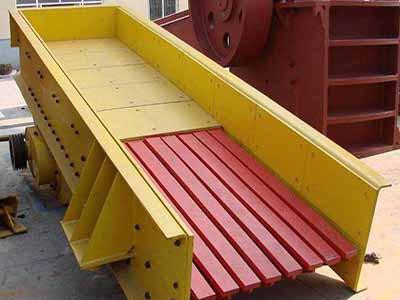

振動給料機在工作過程 中可把塊狀、顆粒狀物料從儲料倉中均勻、定時、連續地送入物料裝置,在砂石生產線中可為破碎機連續均勻地喂料,并對物料進行粗篩分,廣泛用于冶金,選礦,建材,化工,磨料行業的破碎,篩分聯合設備中。
During the processing,this machine can transfer the bulk,granular materials to the crushers from the stock bin evenly and continuously in the given time.Inthe stone and sand production lines,it can feed the crushing equipments continuously and screen the materials coarsely.It is widely used in the crushing and screening equipments of metallurgy,coal,chemical industry,construction material,grinding industry,etc.
性能特點/PERFORMANCE FEATURES
1. 振動平穩,工作可靠,壽命長;Stable and long service life;
2. 可以調節激振力,可隨時改變和控制流量,調節方便穩定;Easy to adjust;
3. 結構簡單,運行可靠,調節安裝方便,重量輕,體積小,維修保養方便;Easy maintenance;
4. 當采用封閉式結構機身時可防止粉塵污染。No pollution.
型號 |
料槽尺寸 |
最大給料尺寸 |
生產能力 |
電動機功率 |
外型尺寸 |
GZD-850×3000 |
850×3000 |
≤400 |
80-120 |
7.5 |
3110×1800×1600 |
GZD-960×3800 |
960×3800 |
≤500 |
120-210 |
11 |
3850×1950×1630 |
GZD-1100×4200 |
1100×4200 |
≤580 |
200-430 |
15 |
4400×2050×1660 |
GZD-1100×4900 |
1100×4900 |
≤580 |
280-500 |
15 |
5200×2050×1700 |
GZD-1300×4900 |
1300×4900 |
≤650 |
450-600 |
22 |
5200×2350×1750 |
注:任何產品設計與規格更改,屆時恕不另行通知。 |
