斗式提升機驅動功率小，采用流入式進料，大容量的料斗密集型布置。在物料提升時無回料和挖料現象，因此無用功率少。斗式提升機運行可靠性好，提升高度高。斗式提升機分皮帶式和鏈條式，在加氣混凝土生產中必須采用鏈條式，用于把破碎過的塊狀石灰送入料倉。

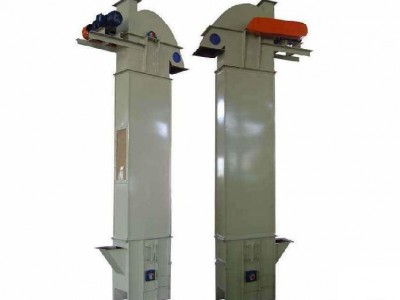

Bucket Elevator
Bucket elevator drive power is small, the use of flow-type feed, large capacity hopper-intensive layout. When the material hoist materials and excavating no return and, therefore, useless power less. Bucket elevator operation reliability, improved high altitude. Bucket elevator belt and chain-points in the production of aerated concrete, chain-must be used for the broken-off block of lime into the silo.
Bucket elevator drive power is small, the use of flow-type feed, large capacity hopper-intensive layout. When the material hoist materials and excavating no return and, therefore, useless power less. Bucket elevator operation reliability, improved high altitude. Bucket elevator belt and chain-points in the production of aerated concrete, chain-must be used for the broken-off block of lime into the silo.
規格：D160型 D250型 D300型 D400型 附表格
Specifications: D160-type model D400 D300 D250 model type with the form
規格與性能參數表 Specifications and Performance Parameters
|
規格
Specification
|
輸出能力（m³/h）
Output capacity (m³ / h)
|
提升高度
Lifting height
(m)
|
物料粒度
Particle size (mm)
|
電機功率
Motor power (kw)
|
|
D160
|
3.0-15
|
≤30.02
|
≤25
|
3-11
|
|
D250
|
11-22
|
≤30.08
|
≤35
|
5.5-15
|
|
D300
|
16-28
|
≤30.16
|
≤40
|
7.5-22
|
|
D1400
|
30-47
|
≤30.22
|
≤50
|
7.5-22
|
